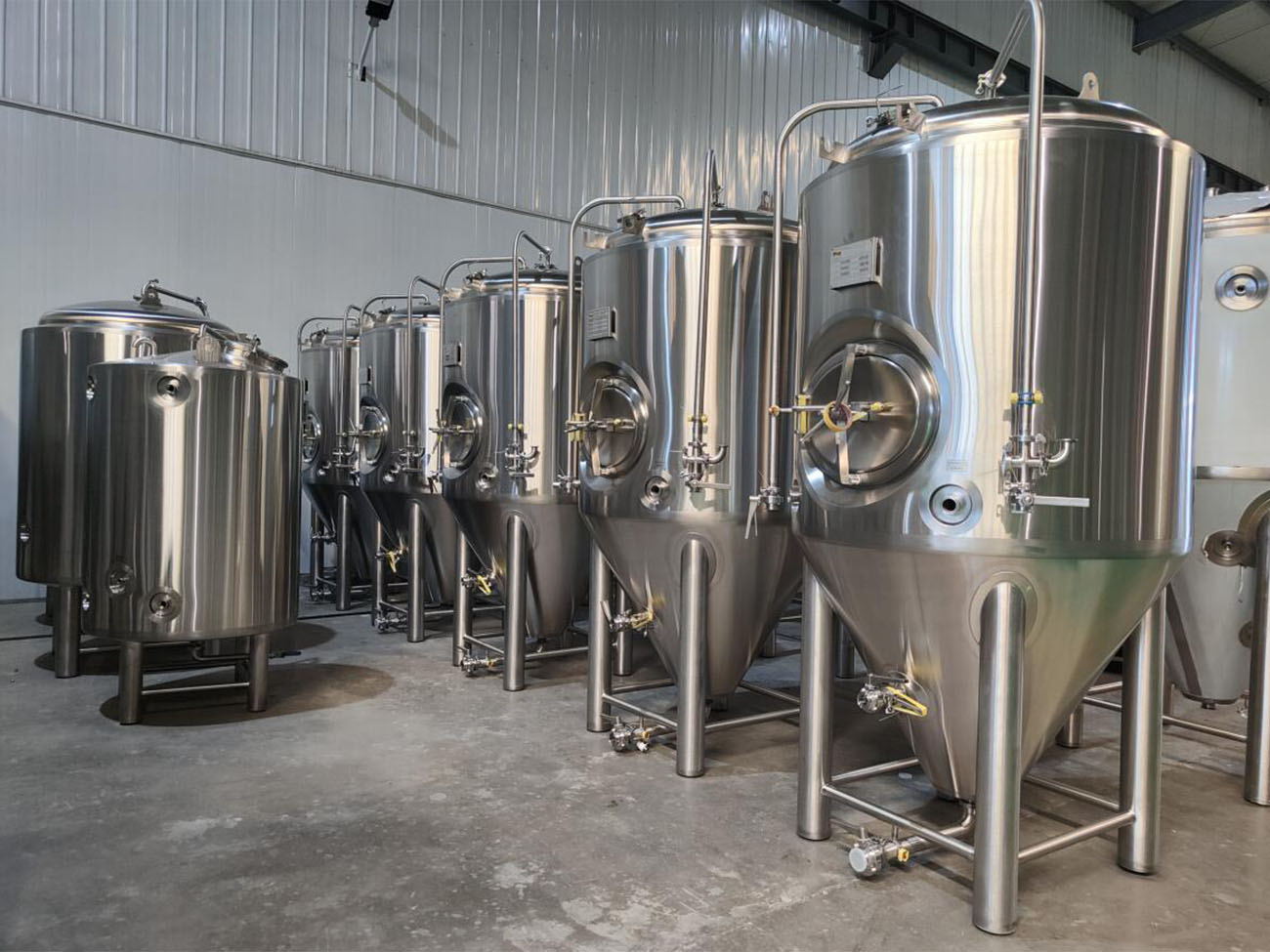

15BBL Beer Fermenters were delivered to PA, America
This is the second time customer placed order after satisfied with our 15bbl fermentation tank working function. More details as follows:
| No. | Item | Parameters | Q’ty |
| 1 | 15bbl beer fermenters | 1.Sanitary Stainless steel 304, 2.Effective capacity: 15BBL, 25% top space; 3.Dome top head, cone bottom; 4.Surface brushed, welding line polish sanding light belt; 5.Polyurethane insulation, thickness: 80mm; 6.Inner body thickness 3mm, cladding thickness 2mm; 7.Double dimple plate cooling jackets(on wall and cone); 8.Tanks with side manway; 9.With rotary CIP spray balls and arm; 10.The tank will have a CIP arm; 11.Pt100 temperature sensor; 12.4’’Dry hopping port on top head; 13.1.5’’Sample valve in the cylinder; 14.Separate outlets for yeast and clear beer, beer racking arm located in the conical part of the tank 15.2’’PVRV; 16.The tank will have a cip arm and one for blowing off co2; 17.Pressure gauge; 18.ladder hooks; 19.1.5’’ Carbonation stone; 20.Working pressure is 2bar and testing pressure is 3bar; 21.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height; 22.Complete with associated valves and fittings. | 2pcs |
