1000L Stainless Steel Beer Fermenter

1000L_ Conical_Beer _Fermentation _Tank

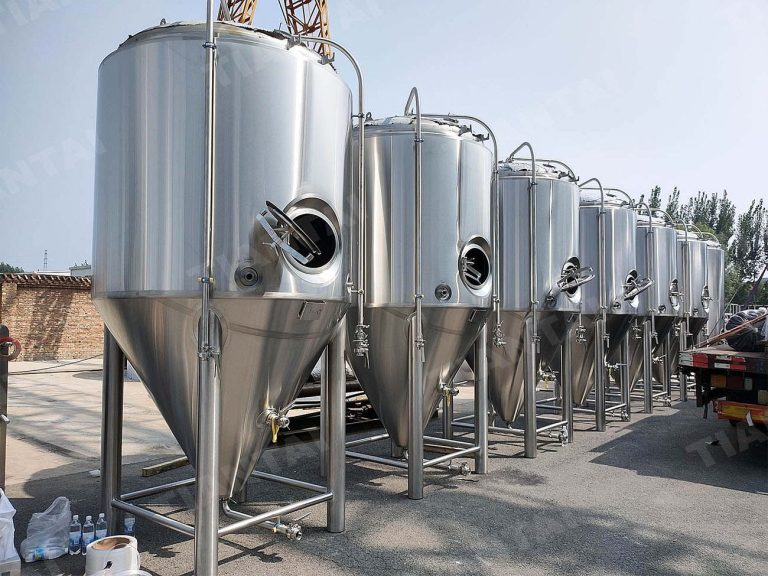

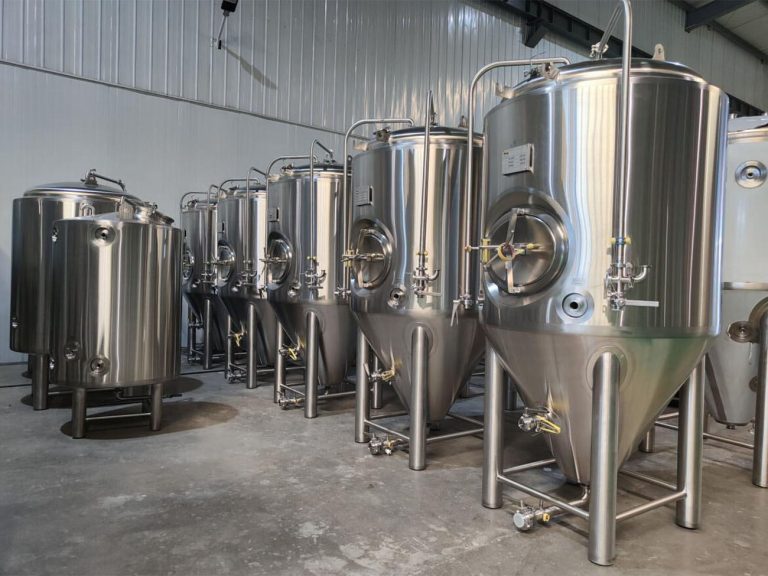

A 1000-liter (L) conical beer fermentation tank is a vessel used in breweries for fermenting beer. It’s designed to accommodate larger batch sizes compared to smaller fermenters, making it suitable for medium-sized breweries or for fermenting larger batches of beer in smaller breweries.

Advantage：

Certified stainless-steel material. Sanitary construction with 100% TIG welded joints and seams with sanitary interior polish. All 1000L beer fermenter and jackets inspected and pressure tested to 2 times operating pressure. All 1000L beer fermenter insulated with high efficiency polyurethane foam. We can custom fabricate any 1000L beer fermenter to meet your brewery’s space and height restrictions. 1000L beer fermenter design pressure is 30 PSI。

Standard product features:

• 1000L beer fermenterw/ 25% head space.
• Design pressure 30psi or 2
• Interior shell: SUS304, thickness 3mm.
• Exterior shell: SUS304, thickness 2mm.
• Interior and exterior finish bright polish to 2B, hygienic surface.
• 60° conical cone bottom.
• Racking port and discharge port with butterfly valve and fittings.
• Side or Top man way door, shadowless.
• Dimple glycol cooling jackets with glycol inlets and outlets.
• Polyurethane foam insulation, thickness 80mm/>3” on side and bottom.
• Fully welded exterior shell.
• 4 legs with levelling foot pads.
• CIP arm and spray ball.
• Rotating racking arm.
• Vacuum relief at 2bar.
• Pressure relief valve at 30psi as standard.
• Sanitary pressure gauge.
• Perlick style sample valve.
• 1000L beer fermenter comeswith fittings, valves, and all parts.
• Lifting Lugs.
• P100 temperature sensor.
• Carbonation stone.
• Dry hopping port.
• 24V DC liquid solenoid valve.

OPTIONS:

• Additional blow off pipework.
• Larger drain ports.
• Tangential inlets.
• Glycol pipework.
