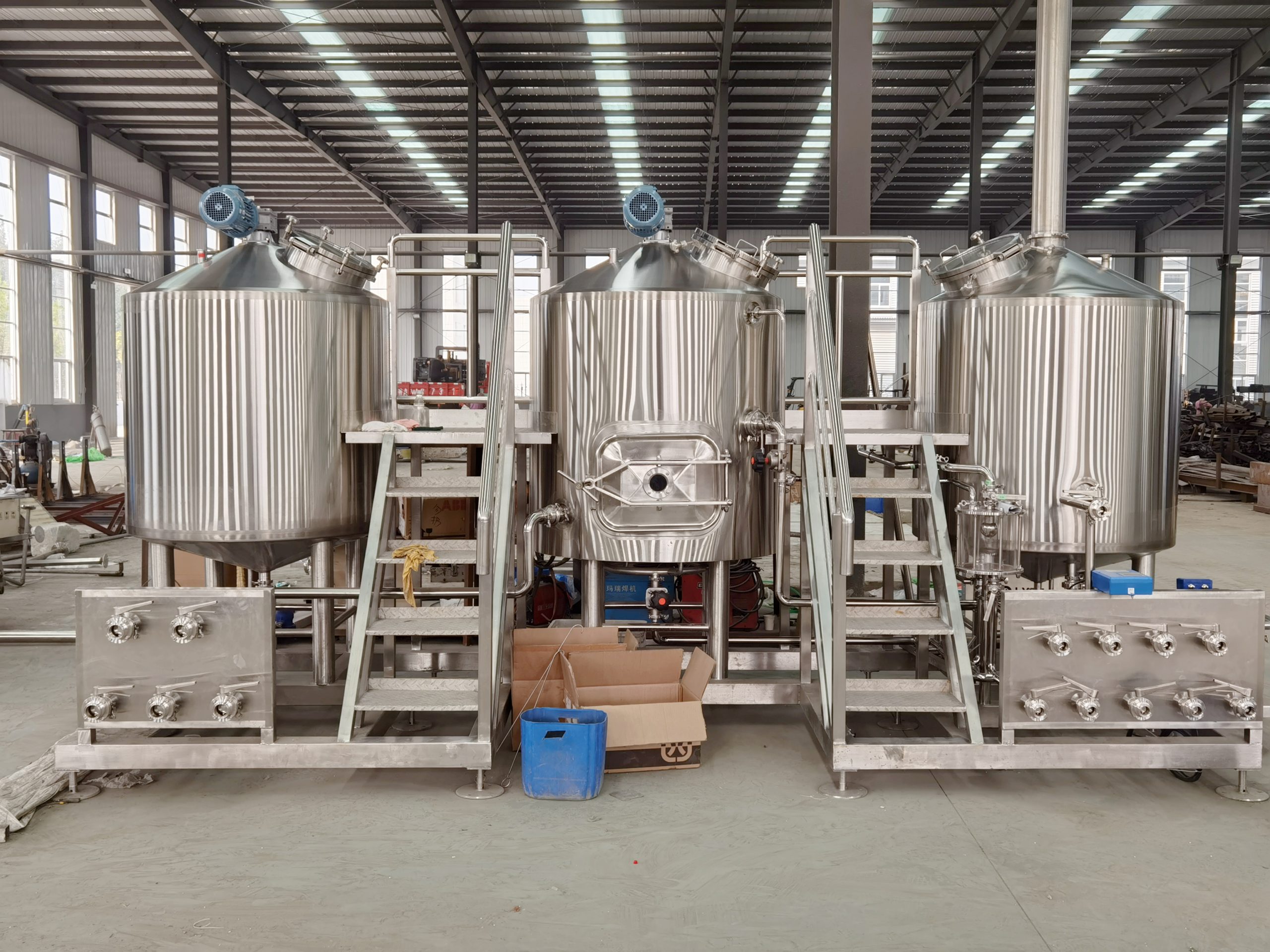

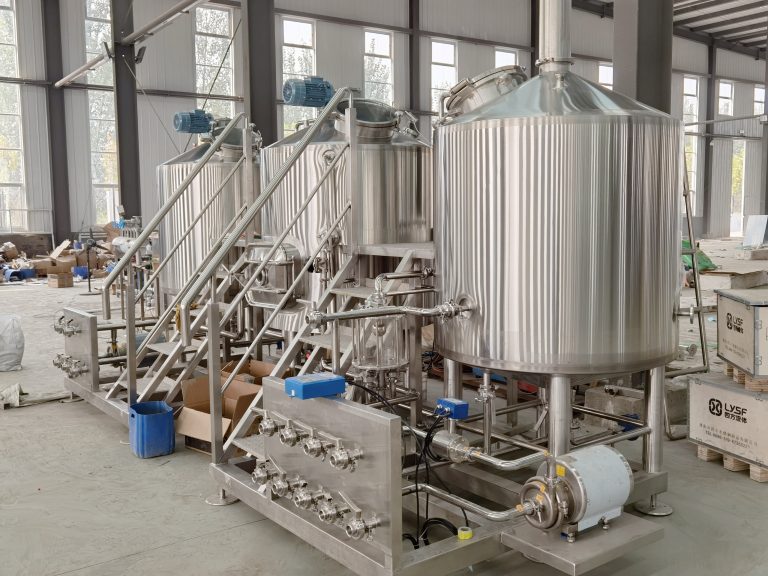

500L 3Vessels Brewing Equipment

500L 3Vessels Steam Brewhouse Equipment

500L 3vessels brewing equipment typically consists of three main vessels: a mash tun, a lauter tun, and a brew kettle. These vessels are used in the brewing process to convert grains into fermentable sugars, separate the liquid from the solid grains, and boil the wort with hops respectively.

The 500L capacity refers to the maximum volume of wort that can be processed in each batch. This size is popular among microbreweries and craft brewers, allowing them to produce a significant quantity of beer while still maintaining flexibility in their operations.

2.500L 3vessels brewing equipment specification:

3.500L 3Vessels Brewhouse Specification:

• Mash lauter tun w/ 30% head space.
• Top glass manway with logo options.
• Hot/cold liquor blending pre grist hydrator.
• Motorized VFD reversible rakes & grain plow to aid with grain out.
• Side steam jacket with push button heating control.
• Internal LED lighting.
• Sparge ring and vorlauf assembly.
• Vorlauf sight glass.
• False bottom – wedge wire. (3mm)
• Multiple wort drain ports.
• Thermo-well and PT100 Thermocouple.
• Multiple CIP under flush ports.
• 20L SUS304 closed wort grant option.
• CIP spray balls – 360⁰ coverage.
• SUS304 Lifting Lugs.
• 4 SUS304 legs with levelling foot pads.

• Kettle/whirlpool combined vessel w/ 40% head space.
• Top glass manway with logo options.
• Bottom, side and top steam jackets with push button controls.
• Internal LED lighting.
• Tangential wort inlet.
• Steam Condenser Stack Kettle steam condenser.
• 1.5″ side wort drain, behind trub baffle.
• 2″ drain outlet.
• CIP spray balls – 360⁰ coverage.
• SUS304 Lifting Lugs.
• 4 SUS304 legs with levelling foot pads.

Pump

• VFD sanitary centrifugal pump.
• Made of 100% non-reactive, sanitary-finished, food-grade SUS304.
• Specific sanitary centrifugal pump designs for brewhouses, HLT, CLT, keg washers, hop cannons.
• Standard flow rate of 5m3/hour.
• Standard lift of 18M – 24M.

Platform

• SUS304 working platform, with stairs and safety railing.

2-Stage Heat Exchanger

• Cold water and glycol stages for expedited knock out.
• High efficiency knock down.
• Easy cleaning and disassembly.
• Back flush capabilities.
• Set of spare plate gaskets included.

0² Oxygenation Assembly

• Sanitary sinter stone.
• SUS304 Ball valve & Gas quick connect.
• Allows to connect to 0² for wort oxygenation.

Valves and Piping

• SUS304 Sanitary fittings/valves/piping.

Brewhouse Electrical Control System

• Brewhouse, HLT, CLT & GT central control system.
• Controls for all VDF pumps.
• Temp gauges and switches to monitor steam heating.

500L 3vessels brewing equipment refers to the maximum batch size of beer that can be produced in one brewing cycle. Such a system is suitable for small to medium-sized craft breweries or brewpubs, allowing them to produce a significant volume of beer while maintaining flexibility for recipe experimentation and production variations.
