600L commerical brewing system

600L_complete_brewing_system

A 600L commercial brewing system is ideal for small to medium-sized breweries, brewpubs, and craft breweries. With a capacity of 600 liters (approximately 159 gallons) per batch, it offers a good balance between production volume and operational flexibility.

2.600L commercial beer brewing system specification:

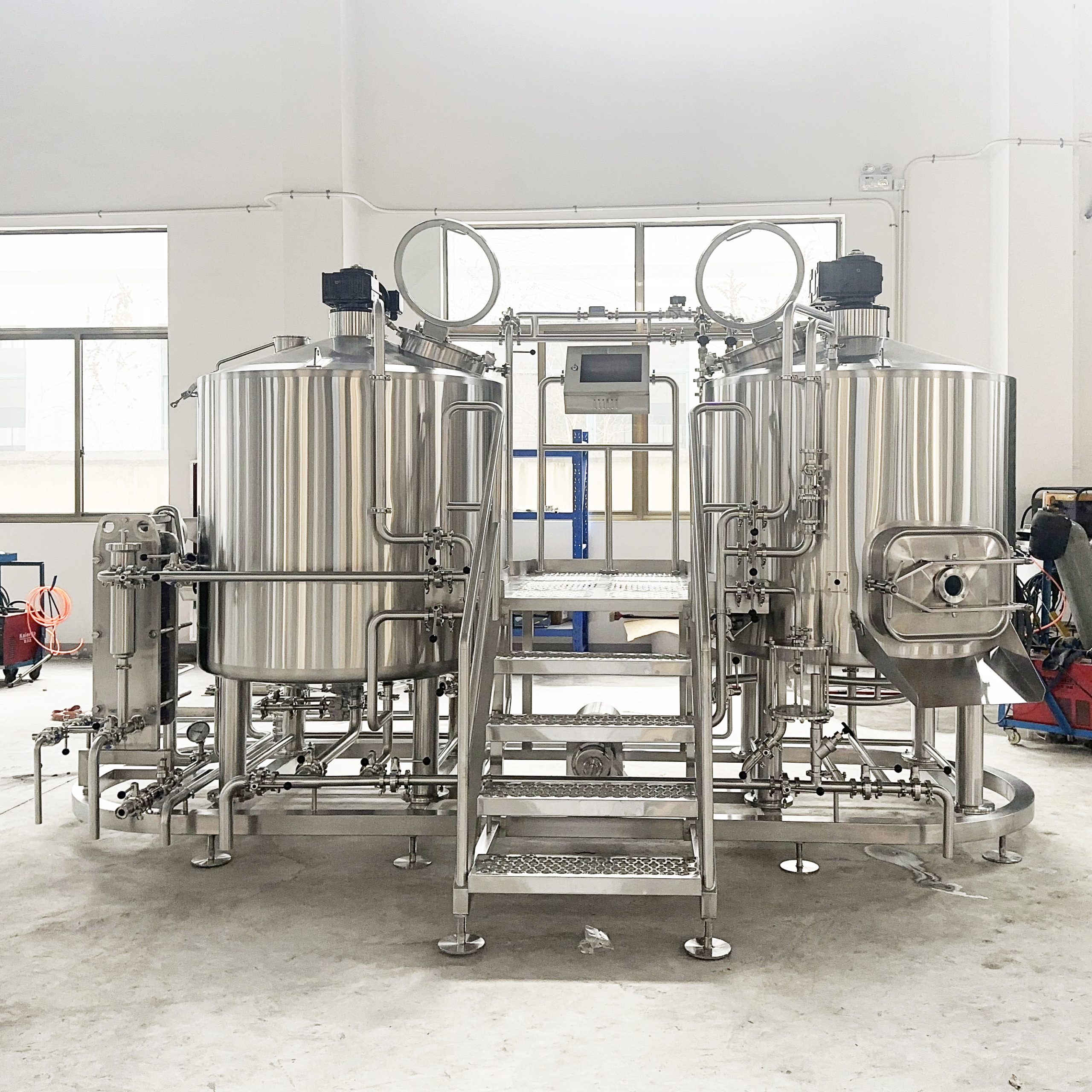

3.600L Brewhouse Specification:

Mash/Lauter tun:

• Mash lauter tun w/ 30% head space.
• Top glass manway with logo options.
• Hot/cold liquor blending pre grist hydrator.

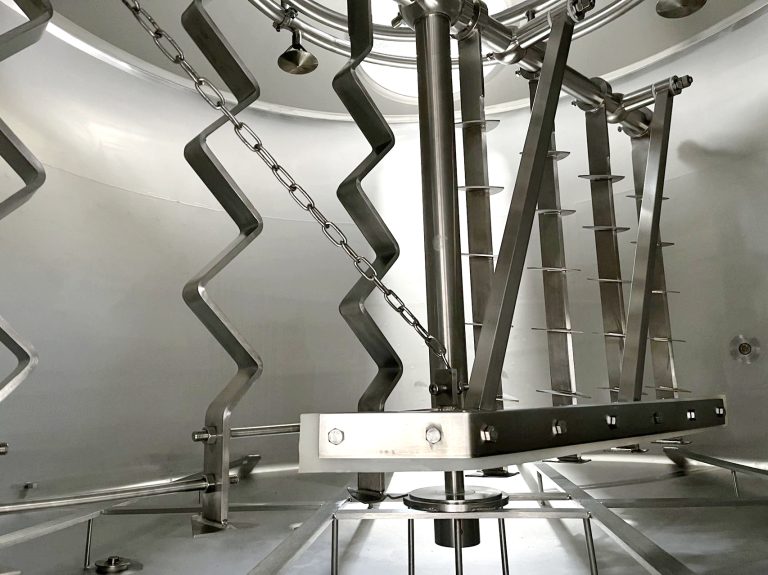

• Motorized VFD reversible rakes & grain plow to aid with grain out.

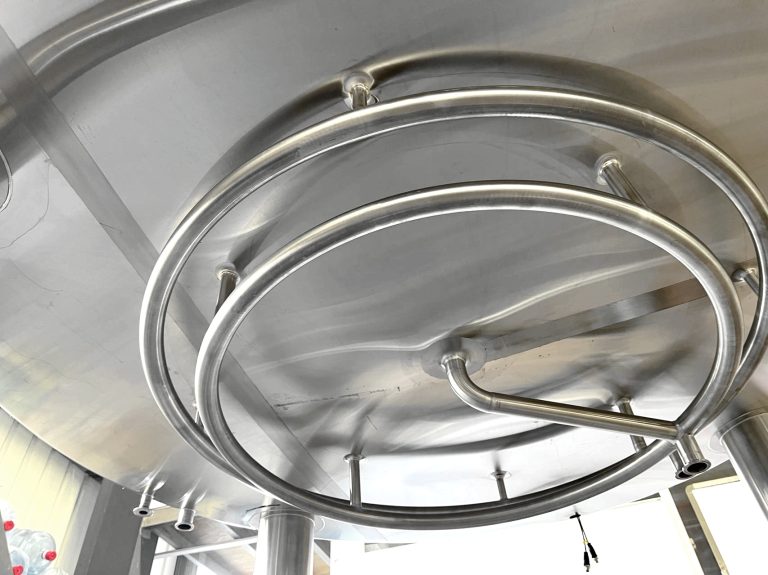

• Side steam jacket with push button heating control.
• Internal LED lighting.
• Sparge ring and vorlauf assembly.
• Vorlauf sight glass.

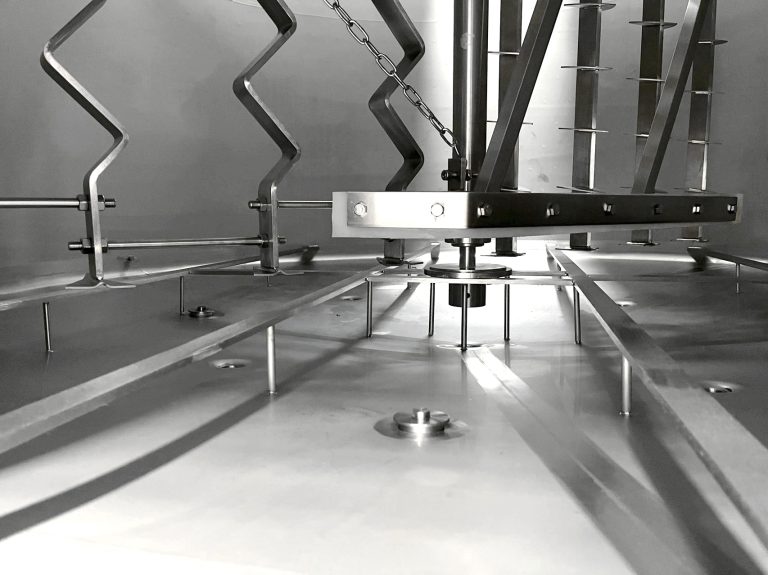

• False bottom – wedge wire. (3mm)
• Multiple wort drain ports.
• Thermo-well and PT100 Thermocouple.
• Multiple CIP under flush ports.
• 20L SUS304 closed wort grant option.
• CIP spray balls – 360⁰ coverage.
• SUS304 Lifting Lugs.
• 4 SUS304 legs with levelingfoot pads

Boiling kettle/whirlpool tank:

• Kettle/whirlpool combined vessel w/ 40% head space.
• Top glass manway with logo options.
• Bottomand side steam jackets with push button controls.
• Internal LED lighting.
• Tangential wort inlet.
• 5″ side wort drain, behind trub baffle.
• 2″ drain outlet.
• CIP spray balls – 360⁰ coverage.
• Steam Condenser Stack Kettle steam condenser.
• SUS304 Lifting Lugs.
• 4 SUS304 legs with levelingfoot pads.

Pump:

• VFD sanitary centrifugal pump.
• Made of 100% non-reactive, sanitary-finished, food-grade SUS304.
• Specific sanitary centrifugal pump designs for brewhouses, HLT, CLT, keg washersand hop cannons.
• Standard flow rate of 10hL p/hr – 200hL p/hr.
• Standard lift of 18M – 24M.

Platform

• SUS304 working platform, with stairs and safety railing.

2-Stage Heat Exchanger

• Cold water and glycol stages for expedited knock out.
• High efficiency knock down.
• Easy cleaning and disassembly.
• Back flush capabilities.
• Set of spare plate gaskets included.

0² Oxygenation Assembly

• Sanitary sinter stone.
• SUS304 Ball valve & Gas quick connect.
• Allows to connect to 0² for wort oxygenation.

Valves and Piping

• SUS304 Sanitary fittings/valves/piping.

Brewhouse Electrical Control System

• Brewhouse, HLT&CLT central control system.
• Controls for all VDF pumps.
• Temp gauges and switches to monitor steam heating.

A 600L brewing system is an excellent choice for small to medium-sized craft breweries looking to enhance production capacity while maintaining high-quality standards. This system offers a balance between efficiency, flexibility, and scalability, making it suitable for breweries aiming to increase their market presence. When selecting a 600L system, consider factors such as material quality, heating methods, automation level, and ease of maintenance to ensure it meets your specific brewing needs and operational goals. With its ready-to-operate design, a turnkey system can significantly streamline your brewing process and help achieve consistent, high-quality beer production.
