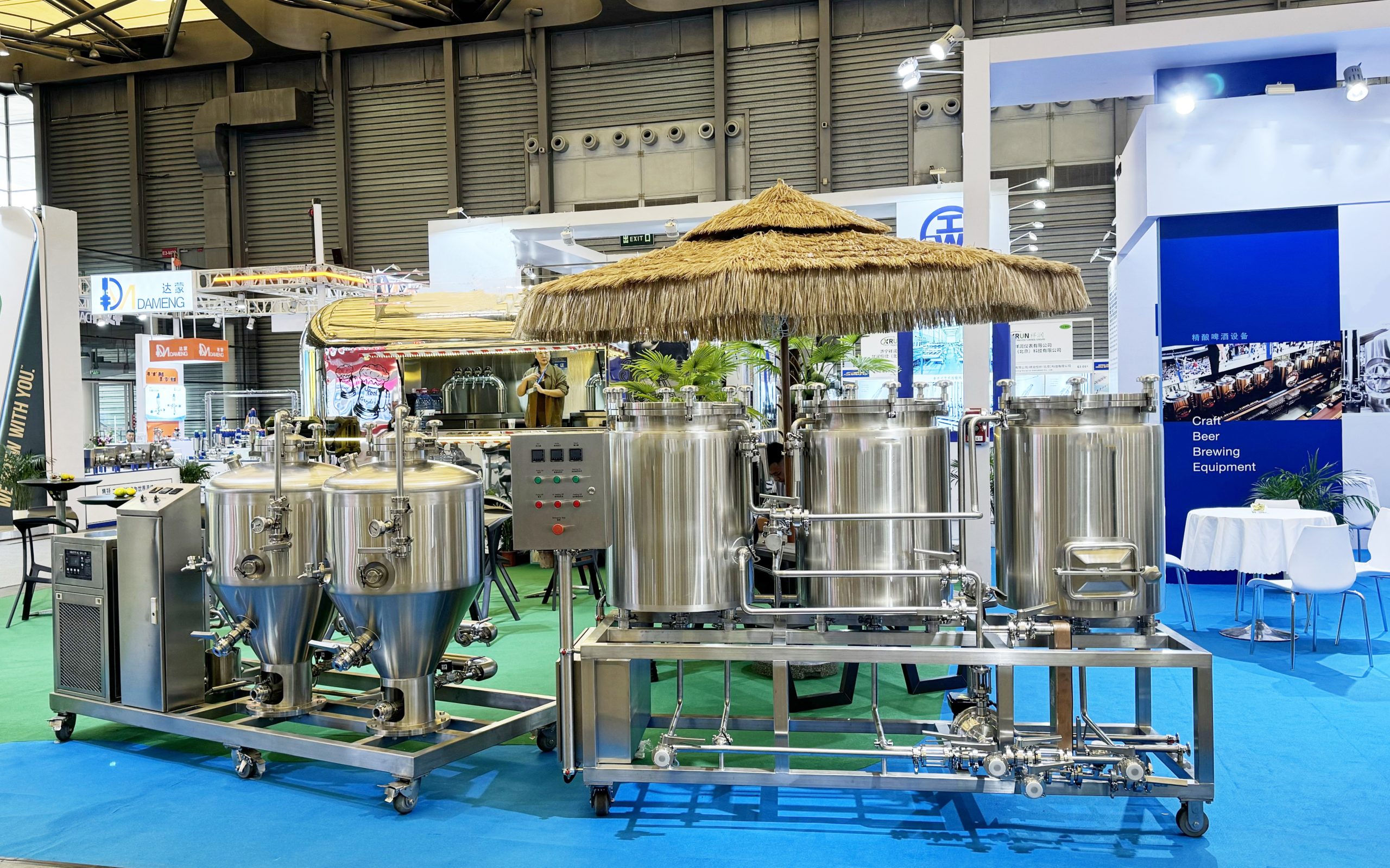

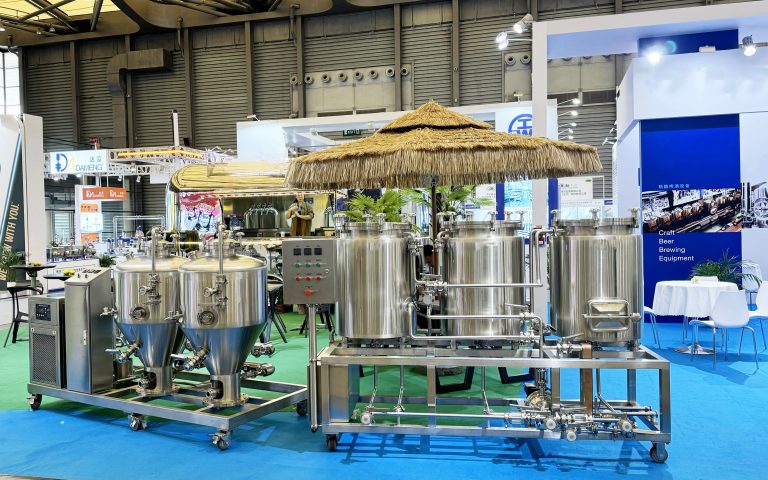

A 100L homebrew beer brewing system is a scaled-up brewing setup that caters to serious homebrewers or small-scale craft brewers.100L skid mounted brewhouse system and 2x100L beer fermenters and one 1HP glycol chiller system, the 100L brewhouse includes one 100L mash/lauter tun, one 100L boiling kettle/whirlpool tank(with electric heating) and one 100L hot liquor tank(with electric heating), one wort chiller and wort pump and brewhouse system with skid mounted.
Setting up a 100L homebrew beer brewing system is an excellent step for passionate brewers aiming to produce larger batches.
1.Configuration list as follows:
100L skid mounted brewhouse system and 2x100L beer fermenters and one 1HP glycol chiller system, the 100L brewhouse includes one 100L mash/lauter tun, one 100L boiling kettle/whirlpool tank(with electric heating) and one 100L hot liquor tank, brewhouse system with skid mounted.
2.Specification List for this set 100L home brewing system:
| General specification for 100L homebrew beer brewing system | ||||
| No. | Name | Components | Capacity | Specification |

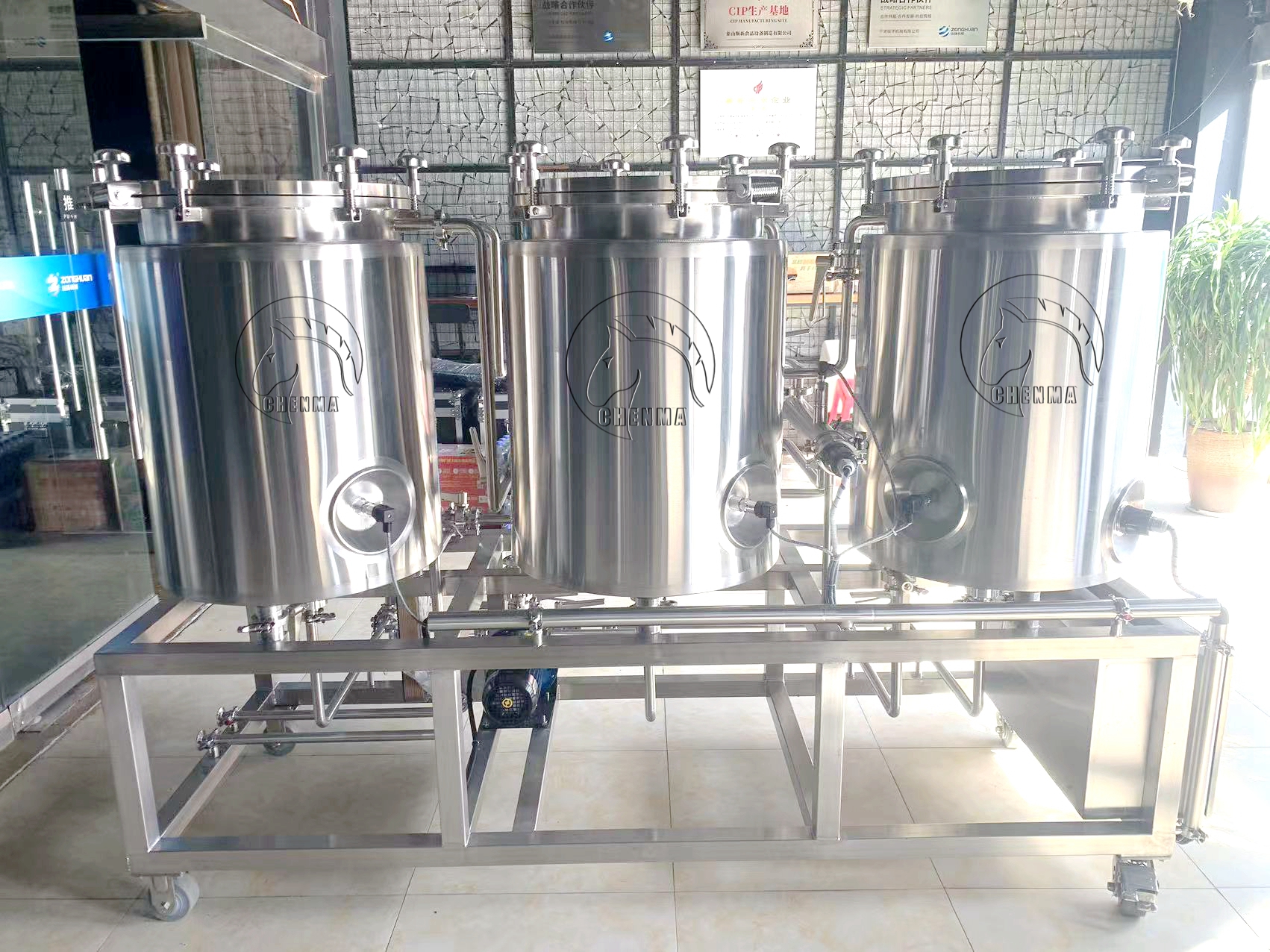

| 1 | Brewhouse Unit | Mash/Lauter tun | 1HL (total 120L) | Top Glass manway, Side mounted grain outdoor with grain chut |
| Laser cutting V-wire False Bottom | ||||
| Kettle/Whirlpool Tun | 1HL (total 120L) | Top Glass manway,Electric heating; Power: 3kw | ||
| Tangential whirlpool inlet | ||||
| Sanitary leveling sight glass | ||||
| Hot Water Tank | 1HL(total 120L) | Top Glass manway, electric heating, heating power:3kw, with rock wool insulation. | ||
| Heat exchanger | 1M2(Effective area) | Completely 304 SS Corrugated plates | ||
| YUY pump | 3M3 | ABB, Sanitary SUS304, VFD control | ||
| Pipe and fittings | As design | completely SS304 | ||

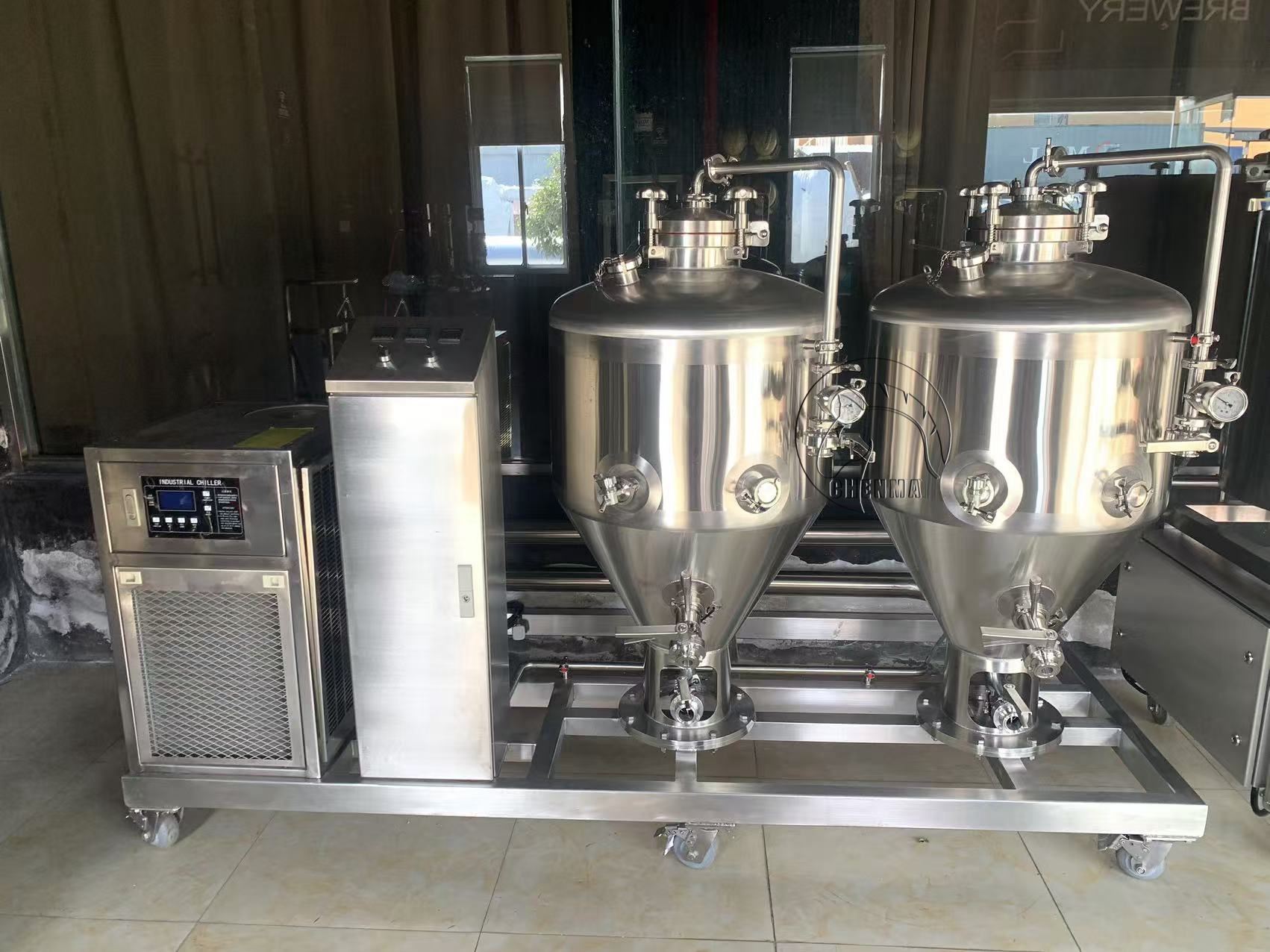

| 2 | Fermentation unit | Fermenter | 1HL(total 150L) | Dimple cooling jacket on cone and bottom |
| Top manway | ||||
| 60 degree cone bottom | ||||
| Perlick style full sanitary sampling valve | ||||
| Carbonation port and level tube for special request | ||||
| Glycol Chiller | 1HPx1PCS | Cooling Capacity: 1HP | ||
| Installed Power:1.5kw | ||||
| Noise:70-80db | ||||
| Refrigerant: Freon R404A ,R410A | ||||
| Compressor, glycol tank and glycol pump inside of chiller. | ||||
| 3 | Control unit | Brewing and fermetation process Controlling | Install one the working platform of brewhouse system | Manual push buttom control panel |
Setting up a 100L homebrew brewing system is an exciting step for anyone looking to scale up their brewing operation!A 100L homebrew brewing setup is a robust system ideal for advanced homebrewers or small-scale commercial brewers. It provides the capacity to brew larger batches while still maintaining the flexibility and control typical of home brewing.
