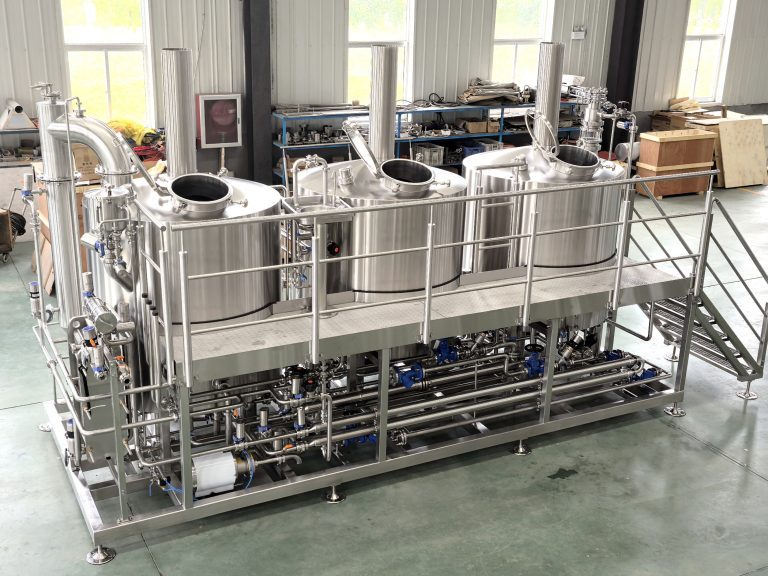

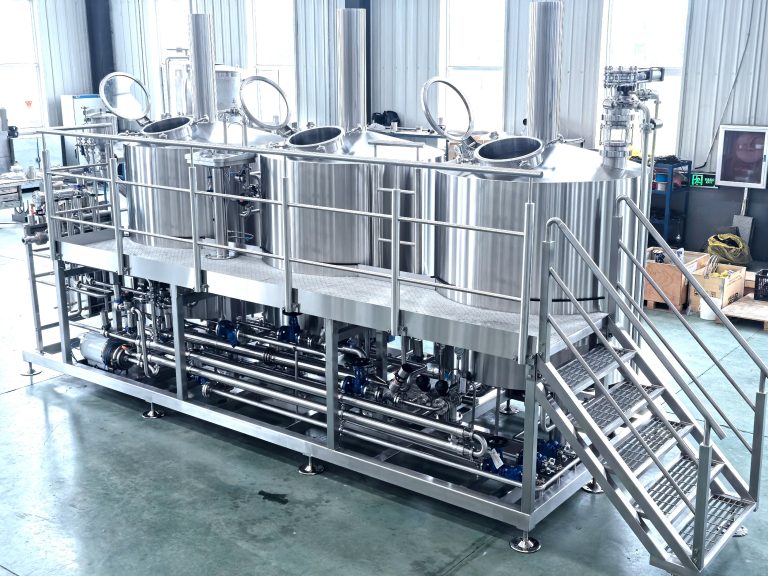

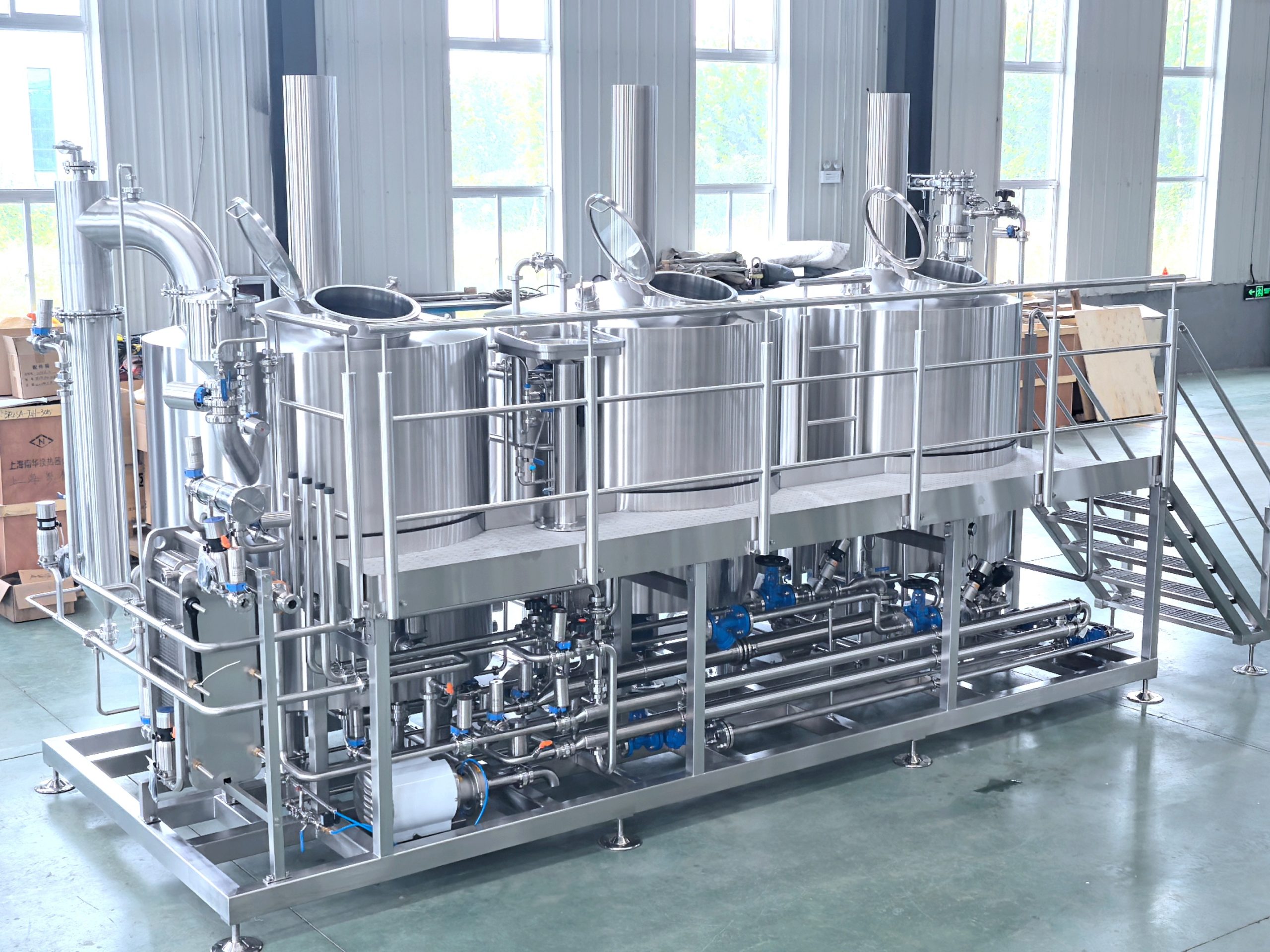

10HL 3vessel brewhouse system is automatic,fully installed on one skid. All the vessels, pumps, piping and other support machine are well connected, which consist a very compact brewhouse for really good floow space saving.

Basic configuration of the whole plante as below:

– A 3 vessel fully automated brewhouse, includes one mash tank, one lauter tun and one boiling kettle/whirlpool tank, The brewhouse is designed for the production of 10HL cold wort output of 14 plato from each brew, but still flexible for brewing of higher/lower gravity beer.

– Full set Siemens PLC system combined with Brewmaxx software.

– Full spent grain transport system.

-What is more special: We use the external heating for boiling, so the wort boiling temp is higher than 100℃, which brings good DMS value control.

-For the future installation, you just need to bring the whole Brewhouse unit to right position, quick connection with extended step, then a few piping connection with water station, after that you enjoy the brew.

This 10HL 3vessels brewhouse system setup is ideal for craft breweries looking to scale up their production while maintaining consistency and quality.
