Brewery Equipment

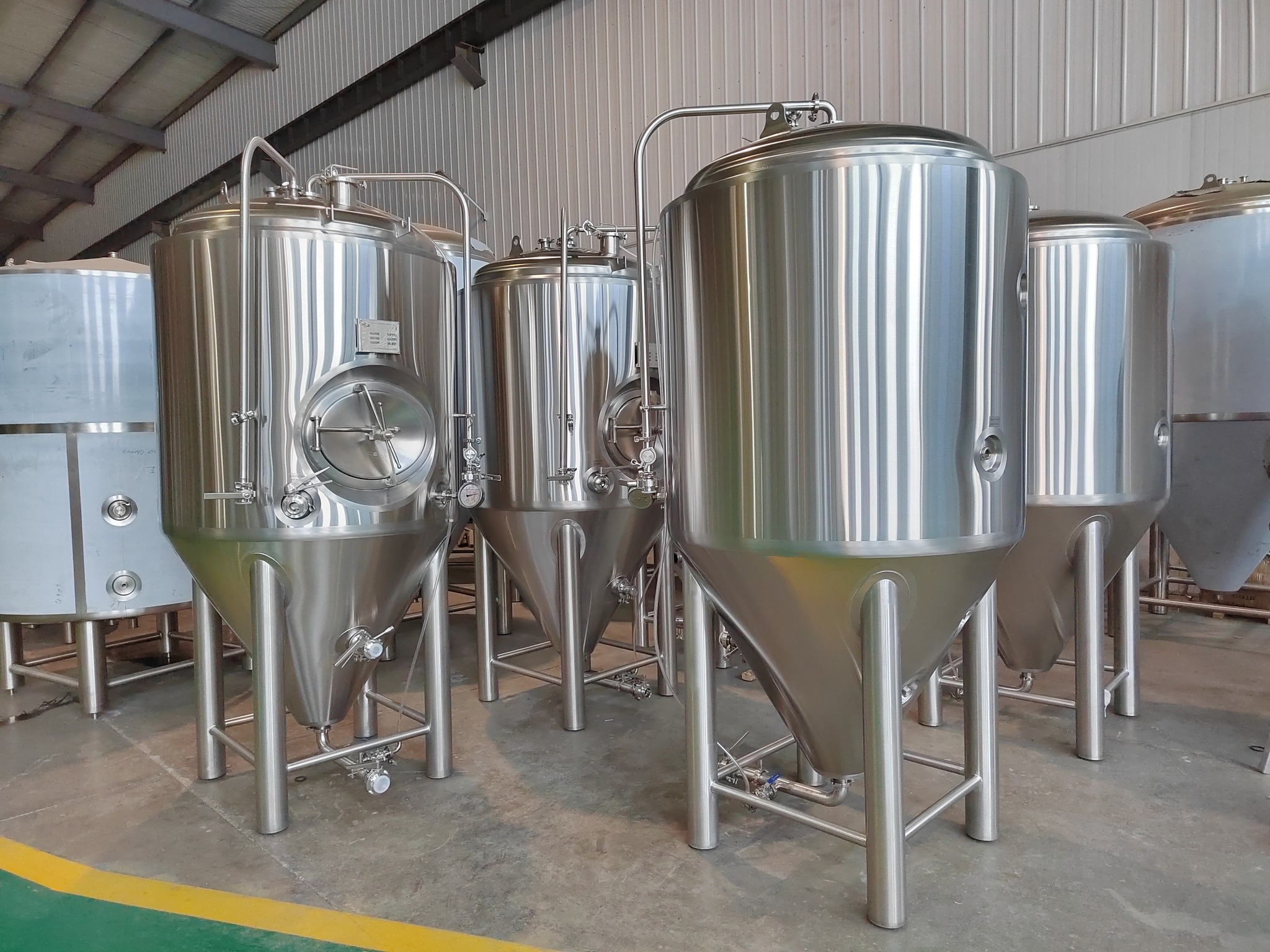

1200L Beer Fermentation Tank

1200L Beer Fermentation Tank

A 1200-liter (L) stainless steel conical fermentation tank is a vessel used in breweries for fermenting and conditioning beer. This size of fermentation tank is commonly found in mid-sized breweries or brewpubs that produce moderate to large batches of beer. A 1200L fermentation tank come equipped with various features such as sampling ports, temperature probes, pressure relief valves, and (CIP) fittings. These features allow brewers to monitor and control the fermentation process while ensuring cleanliness and sanitation.

Product Description

1200L Beer Fermentation Tank

1200L_ Stainless_ Steel_ Conical_Fermentation_Tank

A 1200-liter (L) stainless steel conical fermentation tank is a vessel used in breweries for fermenting and conditioning beer. This size of fermentation tank is commonly found in mid-sized breweries or brewpubs that produce moderate to large batches of beer. A 1200L fermentation tank come equipped with various features such as sampling ports, temperature probes, pressure relief valves, and (CIP) fittings. These features allow brewers to monitor and control the fermentation process while ensuring cleanliness and sanitation.



Advantage:

Certified stainless-steel material. Sanitary construction with 100% TIG welded joints and seams with sanitary interior polish. All fermentation tanks and jackets inspected and pressure tested to 2 times operating pressure. All fermentation tanks insulated with high efficiency polyurethane foam. We can custom fabricate any tank to meet your brewery’s space and height restrictions. Tank design pressure is 30 PSI。

Standard product features:

  • Fermentation tank:l w/ 25% head space.
  • Design pressure 30psi or 2
  • Interior shell: SUS304, thickness 3mm.
  • Exterior shell: SUS304, thickness 2mm.
  • Interior and exterior finish bright polish to 2B, hygienic surface.
  • 60° conical cone bottom.
  • Racking port and discharge port with butterfly valve and fittings.
  • Side or Top man way door, shadowless.
  • Dimple glycol cooling jackets with glycol inlets and outlets.
  • Polyurethane foam insulation, thickness 80mm/>3” on side and bottom.
  • Fully welded exterior shell.
  • 4 legs with levelling foot pads.
  • CIP arm and spray ball.
  • Rotating racking arm.
  • Vacuum relief at 2bar.
  • Pressure relief valve at 30psi as standard.
  • Sanitary pressure gauge.
  • Perlick style sample valve.
  • FermentationTank comeswith fittings, valves, and all parts.
  • Lifting Lugs.
  • P100 temperature sensor.
  • Carbonation stone.
  • Dry hopping portwith solid end cap.
  • 24V DC liquid solenoid valve.

OPTIONS:

  • Additional blow off pipework.
  • Larger drain ports.
  • Tangential inlets.
  • Glycol pipework.
