A 15-barrel stackable horizontal lagering tank is a specialized vessel used in breweries for the conditioning, maturation, and storage of beer, particularly lagers.Stackable horizontal lagering tanks can be vertically stacked on top of each other, allowing breweries to maximize their use of floor space. This configuration is especially beneficial for breweries with limited space or those looking to expand their fermentation and lagering capacity without expanding their footprint.

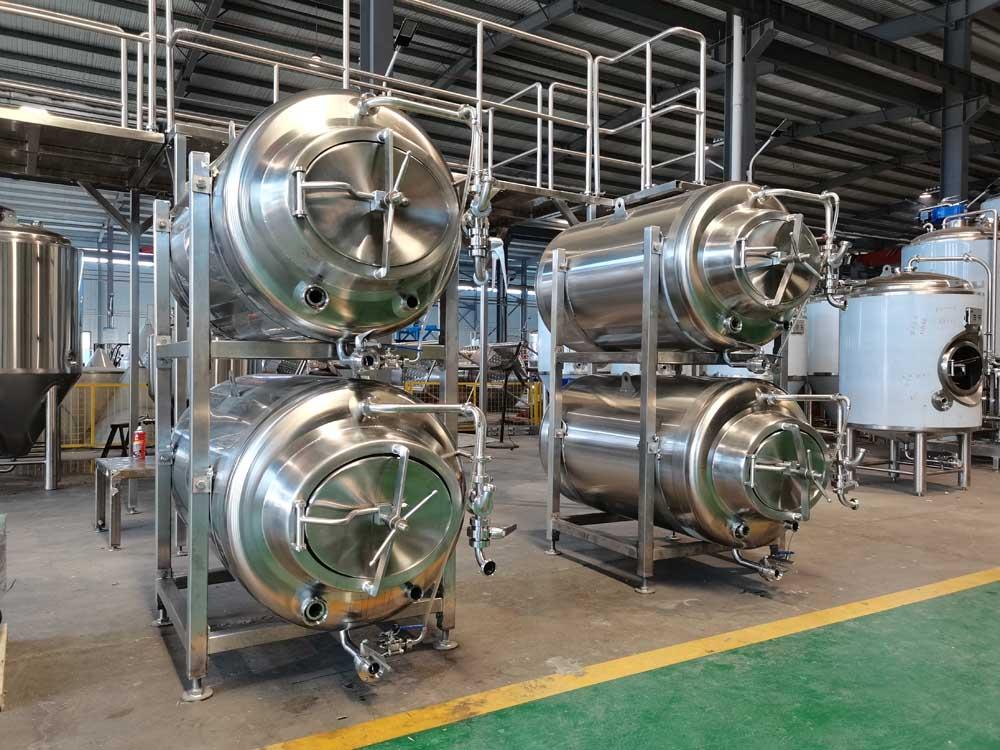

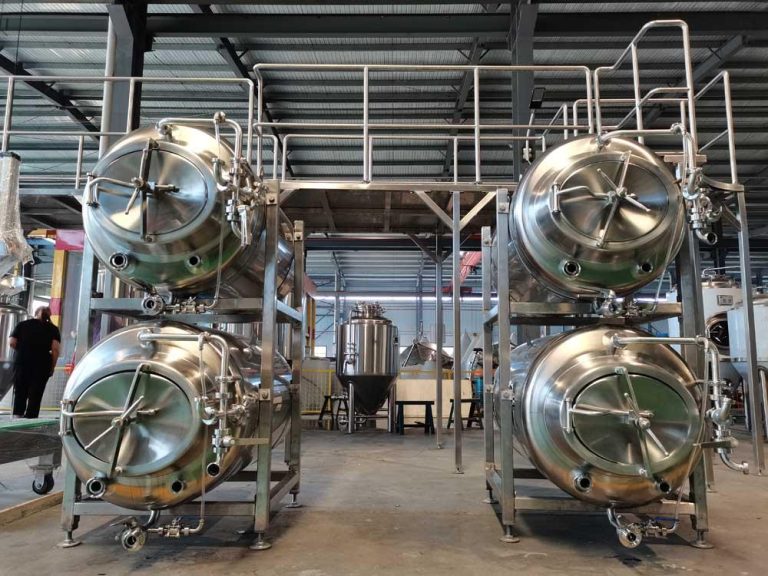

15Barrel Stackable Horizontal Lagering Tank
A 15-barrel (bbl) horizontal lagering tank is a vessel used in the brewing industry for the lagering process. Lagering is the stage in beer production where the beer is conditioned at low temperatures for an extended period, typically weeks or months. This process helps improve flavor, clarity, and stability.Unlike vertical tanks, horizontal tanks have a lower height profile and are often more space-efficient. They may be easier to install in certain brewery layouts and can be stacked if needed.
Specification:
1.Sanitary Stainless steel 304
2.Effective capacity:15BBL;
3.Horizontal stacked;
4.Surface brushed, welding line polish sanding light belt;
5.Polyurethane insulation, thickness: 80mm;
6.Inner body thickness 3mm, cladding thickness 2mm;
7.Dimple plate cooling jacket;
8.2’’PVRV;
9.Manway;
10.With rotary CIP spray balls and arm;
11.Pt100 temperature sensor;
12.1.5’’Sample valve;
13.Pressure gauge;
14.Working pressure is 30psi and testing pressure is 45psi;
15.1.5’’Carbonation stone;
16.Stainless steel legs with bigger and thicker base plate, with screw assembly to adjust leg height;
17.Complete with associated valves and fittings.
