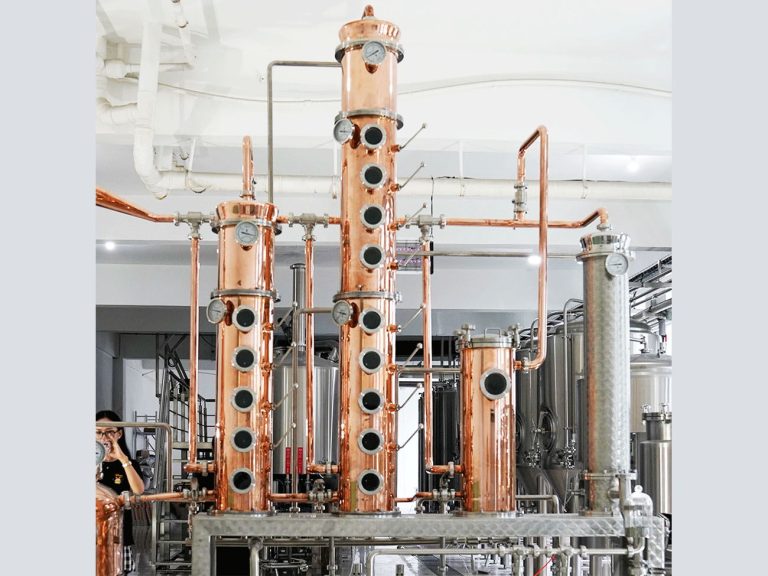

300L Vodka Distillery Equipment

A 300L vodka distillery equipment setup, much like the 200L setup but with a larger capacity, is designed for small to medium-scale distillation operations. This setup allows for increased production compared to smaller systems, making it suitable for craft distilleries or those aiming to produce a moderate quantity of spirits.

Configuration

1. Still Pot

Actual volume 375L, Working volume 300L

Inner pot: red copper T2, thickness: 3m

Dished head: red copper T2, thickness: 3m

Jacketed: SUS304, thickness: 4mm

Insulated: 50mm, PU

Stirring motor: explosion-proof mixer 0.37KW/46rpm(EX)

Outer shell: SUS304, thickness: 2mm

Temperature control: PT100

Heating method: 2*10KW electric heating rods

With glass manhole, CIP cleaning ball, safety valve, sight light, steam trap, etc.

2. Still Column

Material: red copper T2, thickness: 3mm

Red copper tubes, each tray has bubble caps, and with CIP cleaning balls, Drain valve, thermometer

3. Dephlegmator

Material: Red copper T2, thickness:3mm

With cooling water inlet and outlet

4. Gin Basket

Material: SUS304

Size: 4″

Features: you can put plant spices, fumigate scented wine, such as gin

5. Condenser

Material: SUS304, thickness: 3mm

Size: 6″, 900mm

With cooling water inlet and outlet

6. CIP Pump

Category: Sanitary centrifugal pump

Power: 0.75KW (explosion-proof)

Flow rate: 3T/H, head 24m

Working medium: water

Working temperature: 10-100℃

Features: Can clean the distillation kettle, copper head, column, gin basket

Material: SUS304, thickness: 2mm

7. Multifunctional lockers

Control Box

Material: SUS304

Sight light, motor, CIP pump

The 300L vodka distillery equipment setup allows for a moderate increase in production capacity compared to smaller systems, providing more room for experimentation with recipes, larger batch sizes, and greater flexibility while maintaining a manageable scale for craft distilleries or boutique spirits producers.
