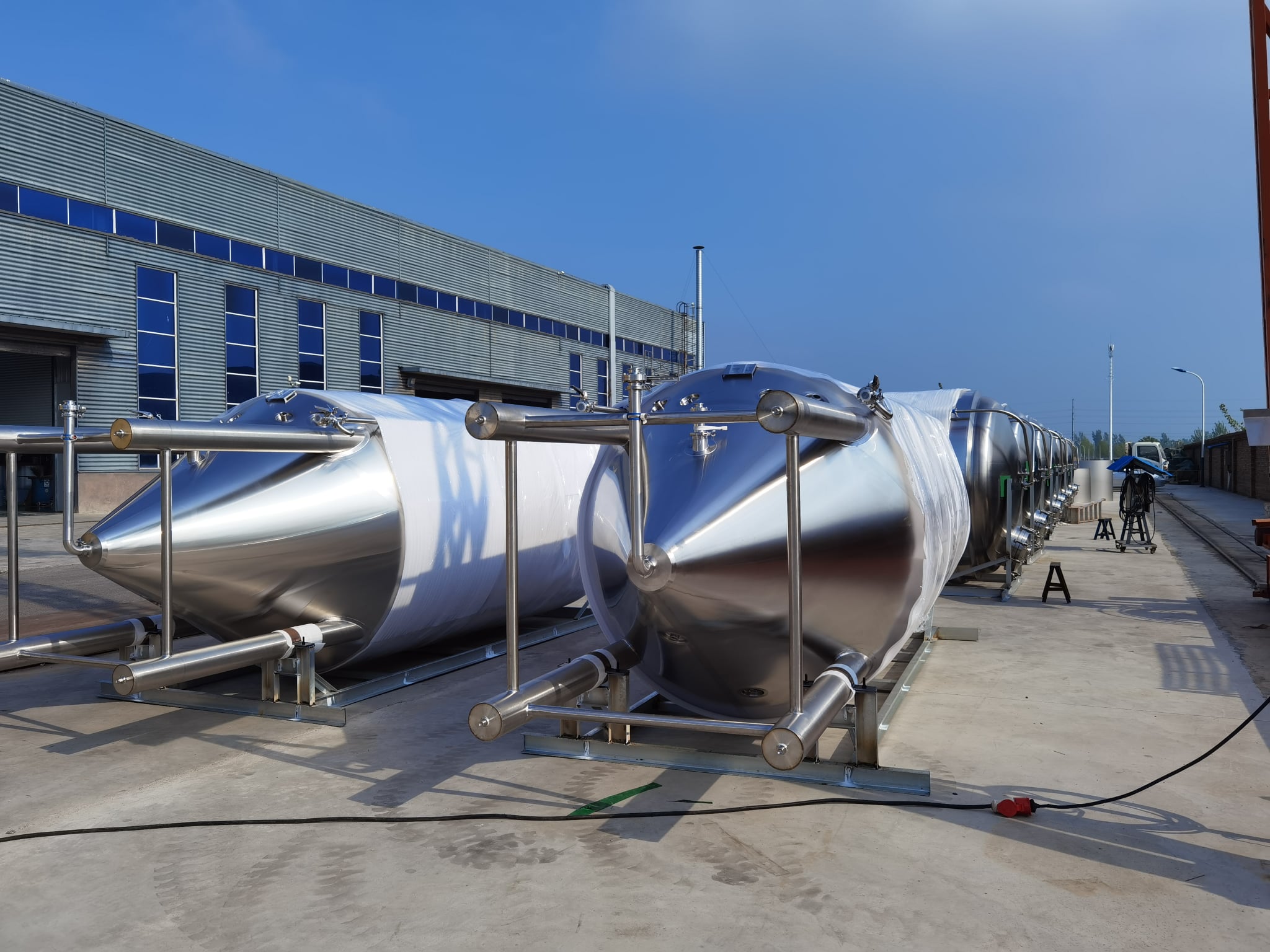

100HL Microbrewery Beer Fermenter

Stainless_ Steel _Cooling_ Jacketed _Beer _Unitanks

A beer unitank, short for “universal tank,” is a versatile vessel used in the brewing industry for both fermentation and conditioning of beer. Unlike traditional fermentation tanks, which require transferring beer to separate conditioning tanks after primary fermentation, unitanks allow brewers to complete both stages of the brewing process in a single vessel.

Advantage：

Certified stainless-steel material. Sanitary construction with 100% TIG welded joints and seams with sanitary interior polish. Beer unitanks and jackets inspected and pressure tested to 2 times operating pressure. All beer unitanks insulated with high efficiency polyurethane foam. We can custom fabricate any beer unitank to meet your brewery’s space and height restrictions. Beer unitanks design pressure is 30 PSI。

Standard product features:

• Function：Wort Fermentation or maturation
• Beer unitanks: w/ 25% head space.
• Design pressure 30psi or 2
• Interior shell: SUS304, thickness 3mm.
• Exterior shell: SUS304, thickness 2mm.
• Interior and exterior finish bright polish to 2B, hygienic surface.
• 60° conical cone bottom.
• Racking port and discharge port with butterfly valve and fittings.
• Side manway door, shadowless.
• Dimple glycol cooling jackets with glycol inlets and outlets.
• Polyurethane foam insulation, thickness 80mm/>3” on side and bottom.
• Fully welded exterior shell.
• 4 legs with levelling foot pads.
• CIP arm with 360° coverage CIP spraying ball.
• Rotating racking arm.
• Vacuum relief at 2bar.
• Pressure relief valve at 30psi as standard.
• Sanitary pressure gauge.
• Perlick style sample valve.
• Beer unitankcomes with fittings, valves, and all parts.
• Lifting Lugs.
• P100 temperature sensor.
• Carbonation stone.
• Dry hopping port
• 24V DC liquid solenoid valve.

OPTIONS:

• Additional blow off pipework.
• Larger drain ports.
• Tangential inlets.
• Glycol pipework.
