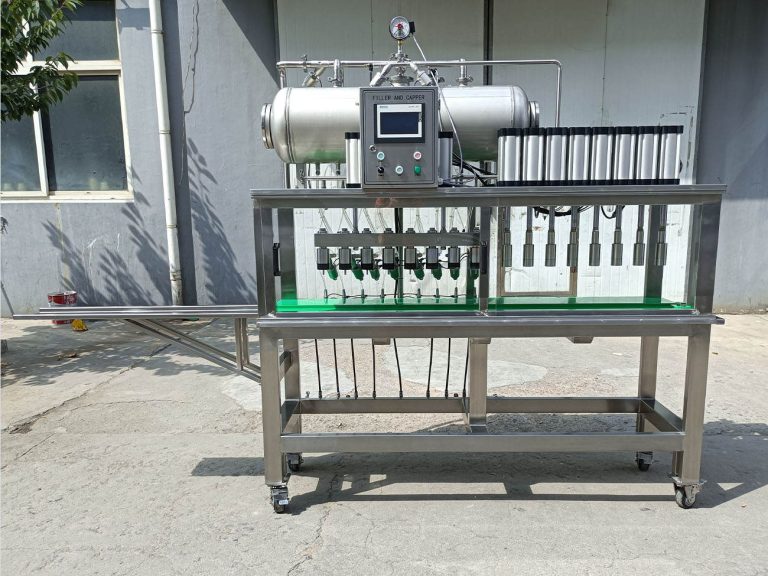

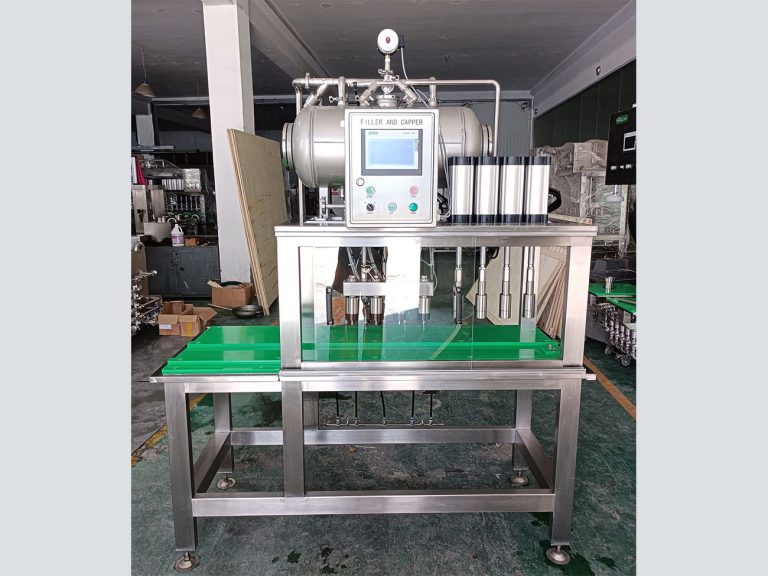

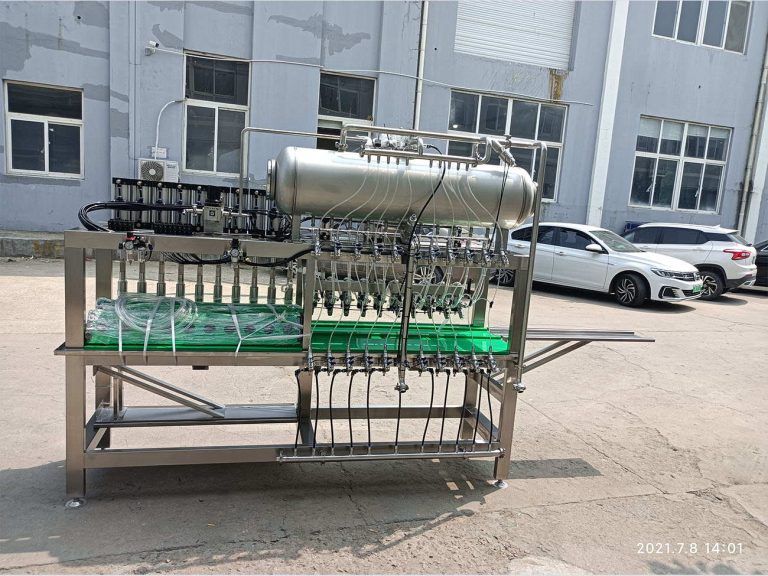

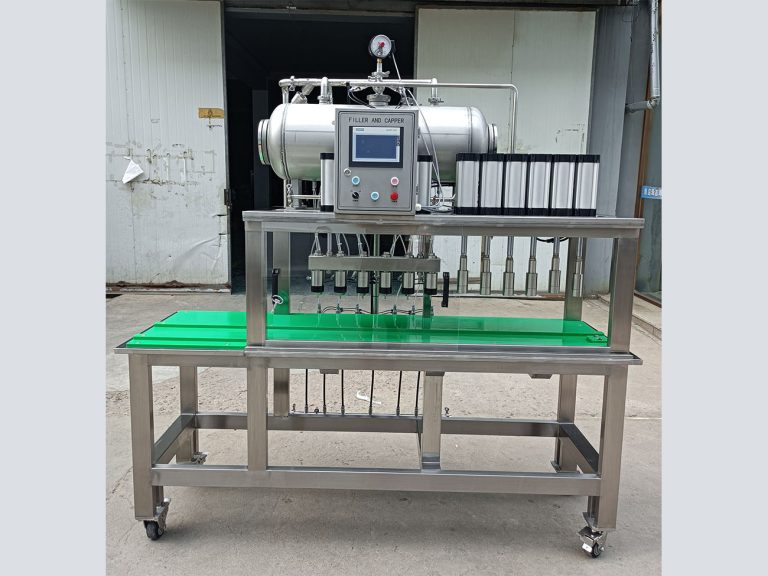

Beer Bottle Filling and Capping Machine
Capacity:
4 stations 300bph
6 stations 450bph
8 stations 600bph
10 stations 750bph
Suitable for microbrewery with small capacity
Customized filling head according to bottle type
Filling and capping are completed at one machine
Isobaric filling, independent pressure holding system
With CO2 pressured and vacuum function
Programmable controller for setting parameters
Main Technical Parameters
Equipment Outer Dimensions | 1800*800*2200mm |
Net Weight | 300KG |
Production Capacity | 300-600 bottles/H |
Applicable Bottles | 330ml-2L bottles |
Working Stations | 4-10 |
Power Supply Voltage | AC 220V 50HZ (customized) |
Main function and feature
1、Automatic control by PLC, all parameters can be adjusted.
2、Filling and capping process can be finished in this machine at one time.
3、With CO2 pressurization and could add vacuum.
4、Adopt isobar filling method and with unique pressure maintaining system,performance stable and reliable, beer loss minimum.
5、With pressure compensator, to guarantee a stable filling process.
Working process
Fix the bottles–co2 purge—- isobaric——filling– pressure stabilization–pressure relief–stop–move the bottles to the capping stations–capping–take the bottle
