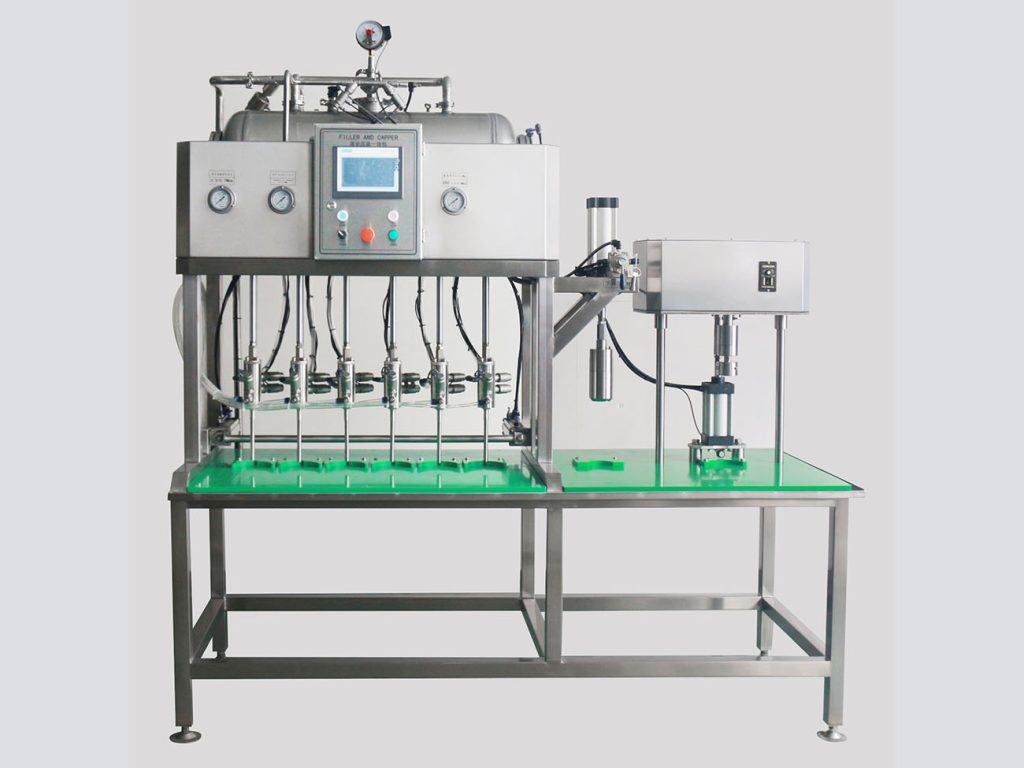

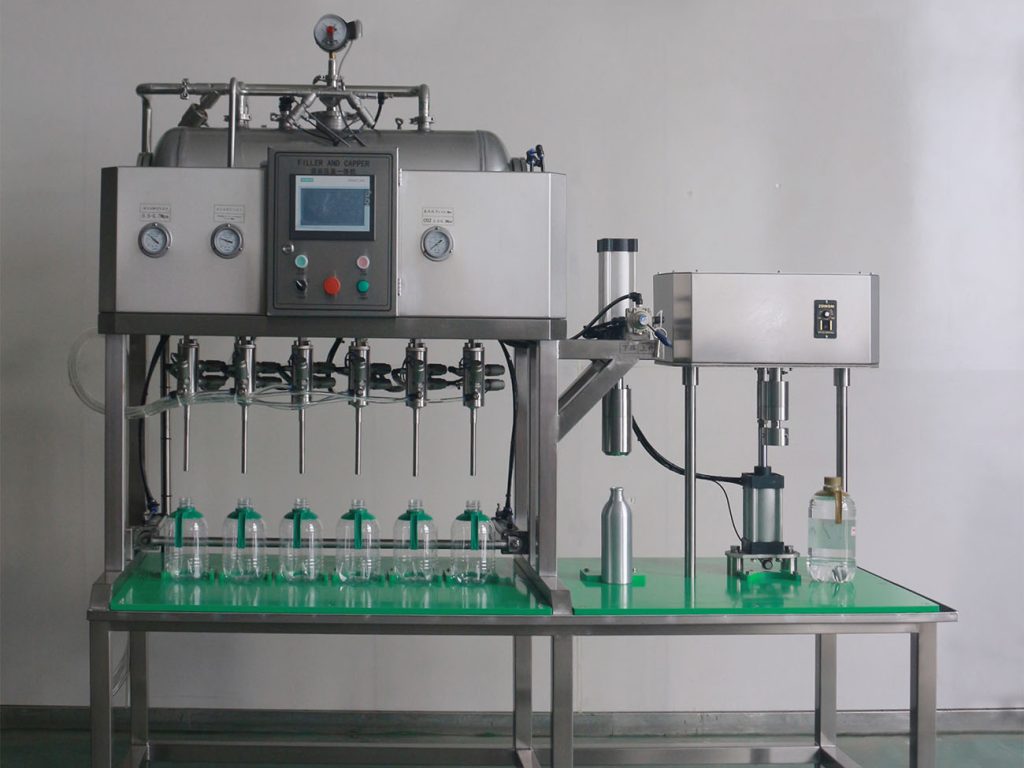

Beer Plastic Bottle Filling and Capping Machine

A beer plastic bottle filling and capping machine is an automated system designed to efficiently fill plastic bottles with beer and then seal them with caps. These machines are commonly used in breweries and beverage production facilities to ensure consistent product quality, hygiene, and high production rates.

Product Description

BeerPlastic Bottle Filling and Capping Machine

Main Technical Parameters

Equipment Outer Dimensions	1750mm950mmm2000mm
Net Weight	300KG
Production Capacity	120-150bottles/H
Applicable Bottles	1.5L PE bottle
Working Stations	4-6
Power Supply Voltage	AC 220V 50HZ (customized)

Main function and feature

Automatic control by PLC,all parameters can be adjusted.
Filling and capping process can be finished in this machine at one time.
With CO2 pressurization and could add vacucum.
Adopt isobar filling method and with unique pressure maintaining system，performance stable and reliable, beer loss minimum.
With pressure compensator, to guarantee a stable filling process.

Working process

Fix the bottles–co2 purge—- isobaric——filling– pressure stabilization–pressure relief–stop–move the bottles to the capping stations–capping–take the bottle
