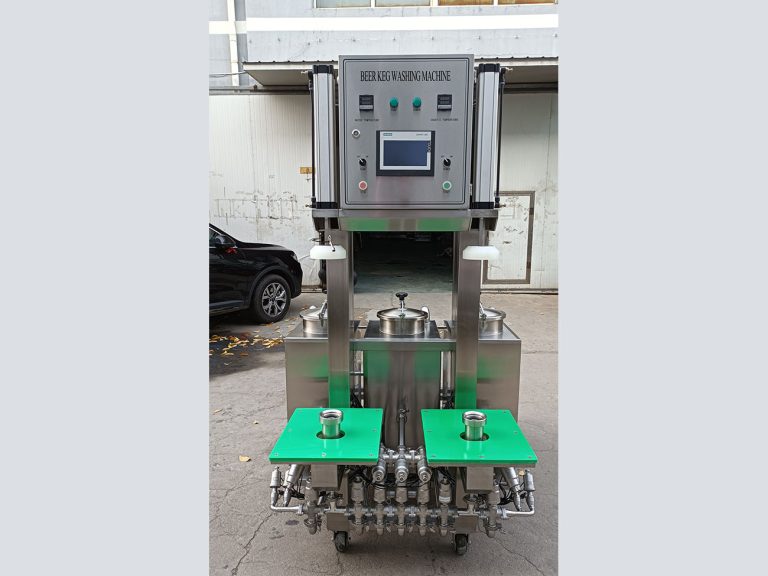

A double heads keg washing machine is a specialized piece of equipment used in breweries and beverage production facilities to clean and sanitize kegs efficiently. As the name suggests, it typically features two washing heads, allowing it to simultaneously clean two kegs at a time.
Main technical parameters
Equipment Outer Dimensions | 1000*1600*2000mm |
Net Weight | 350KG |
Power | Steam Heating: 3KW, Electric Heating: 18KW |
Production Capacity | 60-80 kegs/H |
Washing Method | Invert Washing |
Applicable Kegs | Keg with Diameter 250-500mm, Height 360-600mm |
Heating Way | Electric Heating or Steam Heating |
Power Supply Voltage | AC 380V 50HZ (customized) |
Main function and feature
1、All procedures are thoroughly controlled by SIEMENS programmable controller. All parameters (time values) can be adjusted and shown through touch screen without stopping the machine.
2、Two sets of washing process for customers to choose.
3、Caustic could be used repeatedly to save water.
4、Water tank possess heating function, the temperature can be displayed on screen.
5、With steam sterilization function (user-selectable).
6、Could product three station or four station beer keg washing machine(user-selectable).
Working process:
Start (pressing) — water washing — Caustic washing –Hot water washing– Hot water washing — Steam sterilization — Co ₂ pressurization — Stop.
